Art. ARG2CP

Counterbalanced hand winch stacker

carrello sollevatore contrappesato

particolare sollevatore contrappesato


ARG2CP is designed without fixed forks, which allows the operator to get closer to the loading / unloading position while the counterweight stabilizes the stacker.
Being a handy and functional  stacker  ARG2CP allows the user to lift loads up to 60 Kg to an height of 1.580 mm.
Through the hand winch the load can be  lifted with a minimum effort and through the automatic clutch the load can be blocked at any point within the lifting range.
The load can only be lowered through a direct operation on the hand winch.



TECHNICAL FEATURES

Capacity

Kg 60

Lifting height

mm 1.580

Hand winch 500 Kg AL.KO with friction brake

Strand haulage rope with breaking load 1.000 kg

Push handles

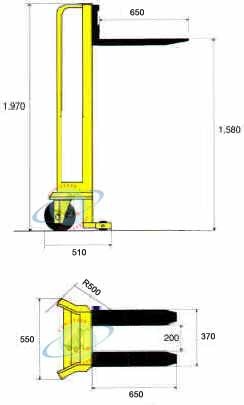

Sizes

Length

mm 1.060

Total width

mm 550

Minimum overall height

mm 1.970

Maximum overall height

mm 1.970


Forks

Length mm 650
Width mm 70
Thickness mm 20
Inner distance between forks mm 200

2 back wheels in nylon polyurethane

Ø mm 150
1 with brake

2 single polyurethane front rollers

Ø mm 80x40

Turning radius

Wa mm 500

Kiln dried epoxy powder painting

Weight Kg 220
