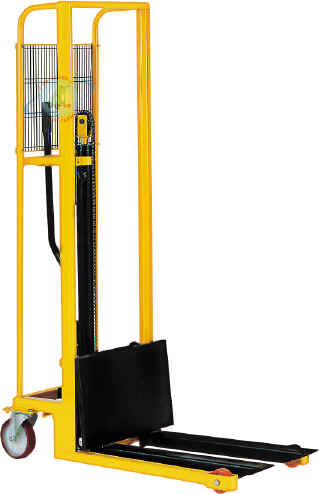

PMP2A Sollevatore idraulico 200Kg

Art. PMP2A

HYDRAULIC HAND STACKER SINGLE ACTING PUMP 200Kg


Being a handy and functional  stacker  PMP2A allows the user to lift loads up to 200 Kg to an height of 1.250 mm. The hydraulic pump is actuated through a direct operation on the lever, which allows to lift the load with a minimum effort.
The load is lowered throug a direct operation on the butterfly valve at the base of the hydraulic cylinder.



TECHNICAL SPECIFICATIONS

Capacity

 Kg 200

Lifting height

mm 1.250

Single acting pump

High resistance chain
Push handles

SIZES

Length

mm 1.000

Total width

mm 530

Minimum overall height

mm 1.610

Maximum overall height

 mm 1.610
Length of fixed legs mm 600

Forks
Length mm 650
Width mm 80
Thickness mm 50
Inner distance between forks mm 210

2 BACK WHEELS in Nylon/polyurethane

 Ø mm 150
1 with brake

2 Nylon front rollers

 Ø mm 80x40

Turning radius

 Wa mm 930

Kiln dried epoxy powder painted
Weight Kg 71
